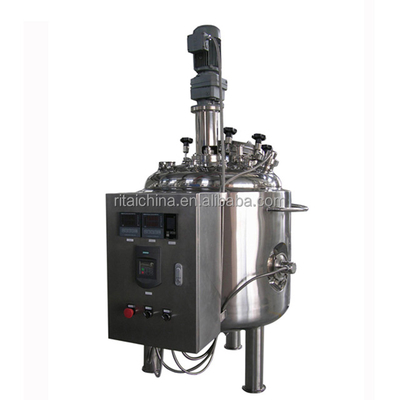

Stainless Steel Liquid Liquid Mixing Tank (Electric Heating Tank)

Ritai is a professional manufacturer for all kinds of stainless steel tanks, such as mixing tank, reactor, storage tank, fermentor, bioreactor and CIP.

Ritai is one of the biggest manufacturers of stainless steel tanks in China.

Name: Liquid Mixing Tank

Applications:

We have different kinds of agitators

Bottom magnetic agitator with impellers. The range of its rotating speed is 50-400rpm or 50-800rpm. It is applied to many products, such as eyedrop, injection, CIP liquid, and water, etc.

Top mechancial agitator with  impellers. The range of its rotating speed is fixed 71rpm or adjustable 20-200rpm, or we can

make it according to your special requirements. This kind of agitator is applied to mix syrup, injection, blood, oral liquid, and

culture media, etc.

Top mechanical agitator with anchor or frame impellers, its rotating speed is from 10-70rpm. It has higher mixing viscosity, and it can be used for sediment or oral liquid, etc.

Top emusification homogenizer, its max speed is 2900rpm for small vessels, 1480rpm is for bigger tanks. This kind of agitator

 has the highest viscosity, and it is used for suspension, oil, fat emulsification, etc.

Bottom emusification homogenizer, its parameters are the same as the top emusification homogenizer. Certainly, it is used for suspension, oil, fat emulsification, etc.

One tank can install an agitator, if our clients have special requirements, the tank can be installed with two agitator together.

Technical description of liquid mixing tank:

Specification: 10L~30000L

Material: SS316L or SS304

Surface finish: inside surface is Ra0.28~0.4μm by mechanical polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μm by satin finish.

Pressure: ATM or pressure vessel (-0.1~1Mpa)

Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation

Jacket type: dimple jacket, full jacket, or coil jacket

Insulation material: rock wool

Components can be equipped as request:

standard components: manhole or handhole, sight glass, cleaning ball

optional components:

vent filter with Pall cartridge or china brand cartridge

temp. gauge, display on the gauge directly on the vessel

temp sensor pt100, digital display on the control cabinet by instrument

temp sensor with control for heating and cooling

level gauge with digital display of instrument on control cabinet

load cell

valves

Manufacture standard for pressure vessels: ASME with U stamp, PED 97/23/EC with CE mark, GB150-2011,

 We offer design, customization, manufacture, and maintenance services, etc.

Shanghai Ritai Medicine Equipment Project Co., Ltd. mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, fermenters, valves and piping system which are widely used in the following fields, such as pharmacy, biology, chemistry, food and drinks industry.

Shanghai Ritai is qualified to design and manufacture pressure vessels with the certificates of ASME, PED 97/23/EC, NB, and ISO 9001:2008.
